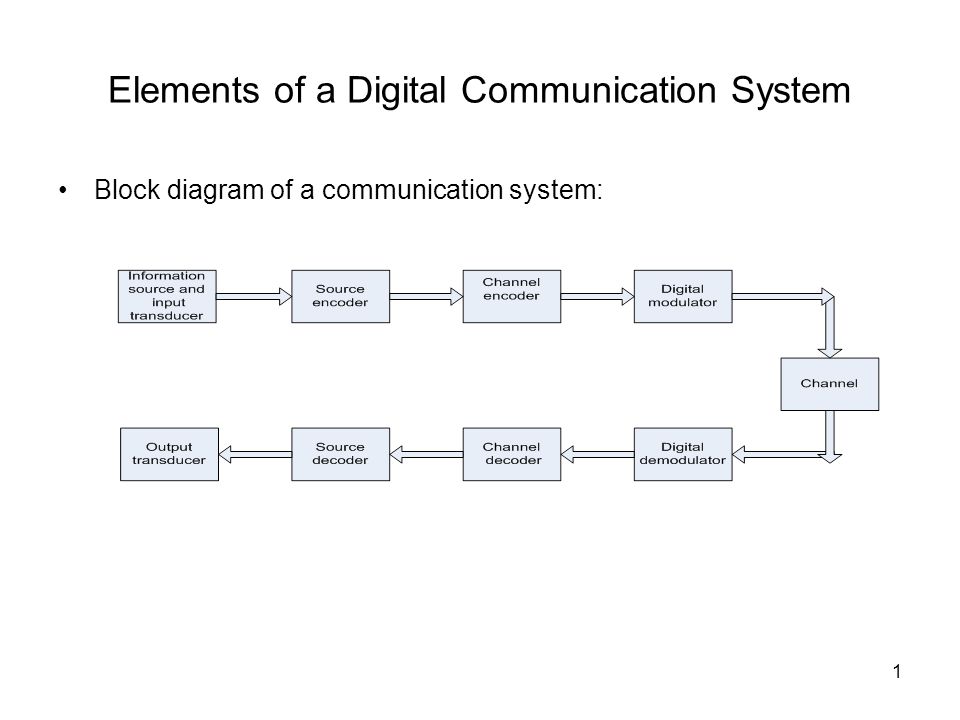

Elements Of A Digital Communication System Ppt Video Online Download

The basic elements of a communication system are shown in the elementary block diagram.

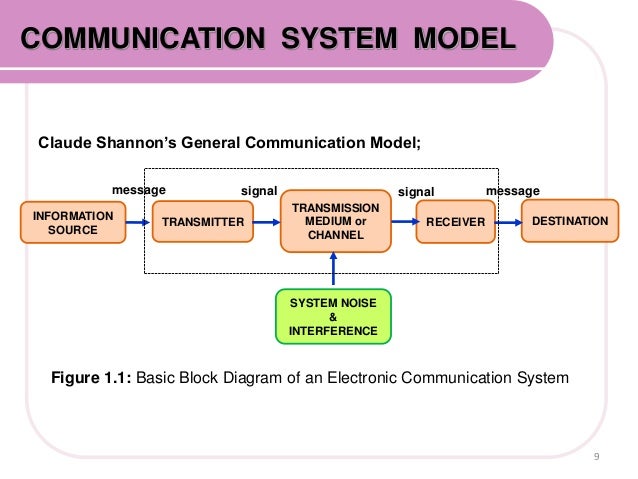

Basic communication system diagram. The block diagram of a communication system will have five blocks including the information source transmitter channel receiver and destination blocks. Basic communication model according to adler and towne 1978 all that ever has been accomplished by humans and all that ever will be accomplished involves communication with others. Different communication equipments when assembled together form a communication system.

Communication channel or medium. The communication channel is the medium used for the transmission of electronic signals from one place to the another. After generating an idea the sender encodes it in a way that can be.

Communication has to happen anytime anywhere at any place through any medium at any speed through any device. Radio and television are examples of the broadcast mode of communication system. Typical example of communication system are line telephony and line telegraphy radio telephony and radio telegraphy radio broadcasting point to point communication and mobile communication computer communication radar communication television broadcasting radio telemetry radio aids to navigation radio aids to aircraft landing etc.

Many social and organizational problems derive from unsatisfactory relationships brought about by inadequate communication between people. Types of basic communication system. In the point to point communication mode communication takes in place over a link between a single transmitter and a receiver.

1information source the objective of any communication system is to convey information from one point to the other. Block diagram of communication system basic building blocks of communication system with explanation here we will learn what is communication system and how we can convey messages from one place to another electronically. Following is the basic block diagram of communication system information source the various massage is the form of words group of word code symbol soun.

Depending upon the type of the communication medium two types of the communication system will exist. There are two basic modes of communication system. This article throws light upon the five main processes of communication.

The communication medium can be conducting wires cables optical fibres or free space. Communication starts with the sender who is the initiator of the message. Basic elements of communication system.

The information comes from the information source which originates it. To become familiar with communication systems one needs to know about amplifiers and oscillators that means fundamentals of electronic circuits must be known with these concepts as a background the every day communication concepts like noise modulation and information theory as well as various types of systems may be studied.
